1.261.300.00 ECO CAN PLC Module (2 x CAN High Speed RS232) 9-30V
1.261.300.00 ECO CAN PLC Module (2 x CAN High Speed RS232) 9-30V
1.261.300.00 ECO CAN PLC Module (2 x CAN High Speed RS232) 9-30V
1.261.300.00 ECO CAN PLC Module (2 x CAN High Speed RS232) 9-30V

1.261.300.00 ECO CAN PLC Module (2 x CAN High Speed RS232) 9-30V

by MRS Electronics
$424.61
Request Custom Pricing

Buy in Bulk and Save:

  • 1-4 Pieces ($424.61 / Pc)
  • 5-19 Pieces ($419.23 / Pc)
  • 20-49 Pieces ($412.06 / Pc)
  • 50+ Pieces ($405.36 / Pc)
Description

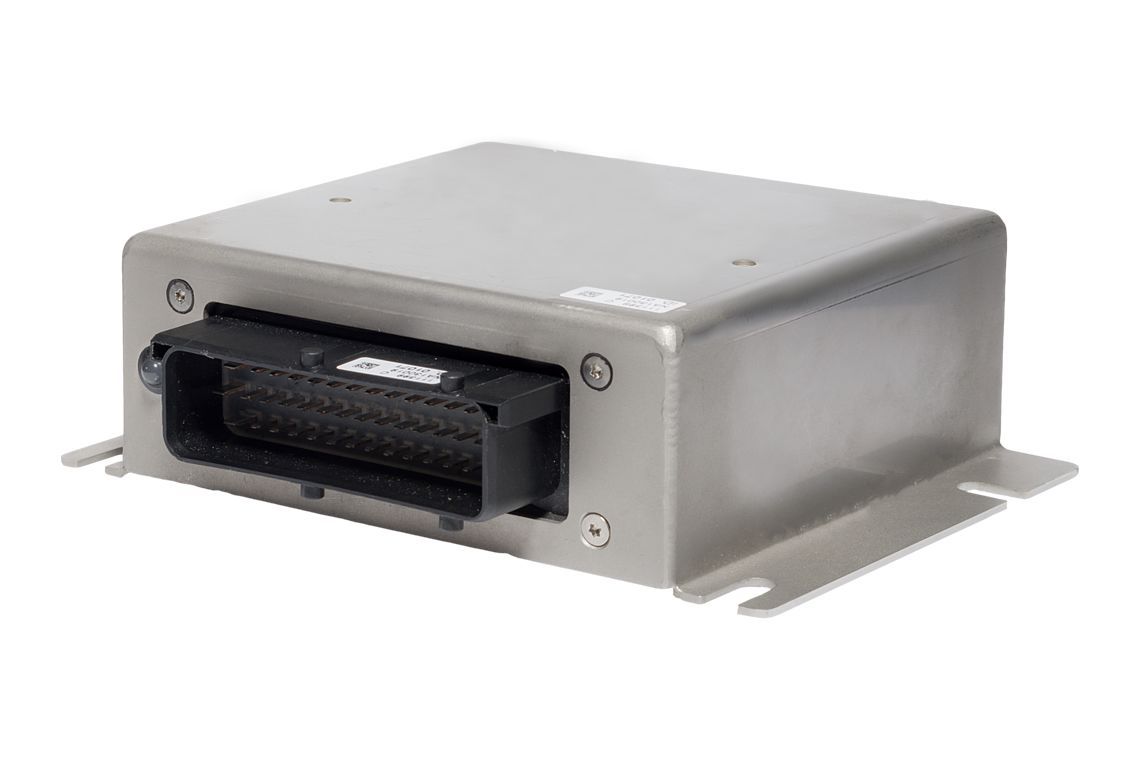

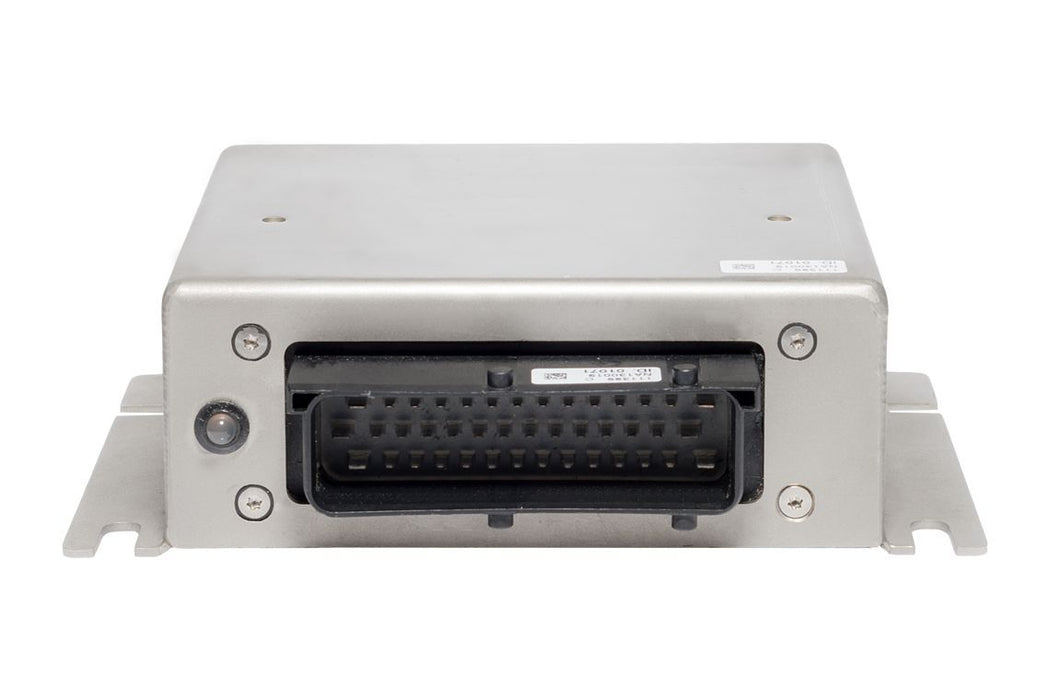

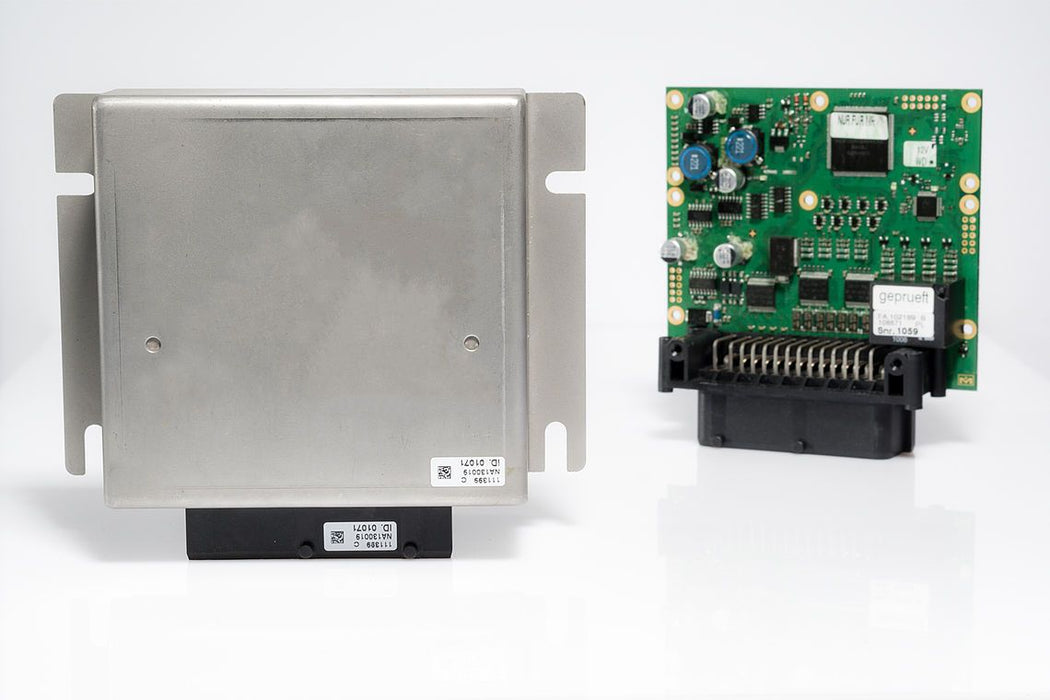

The M2600 ECO CAN PLC module is a powerful controller in a compact, half-shell steel (V2A) housing. Its wide range of possible I/O combinations and versatility to complement other control modules opens up a wide and universal range of applications across many industries.
  • Product Type: ECO CAN PLC Module (2 x CAN High-Speed RS232) 9-30V
  • MRS Electronic PN: 1.261.300.00
  • Brand: MRS Electronics
  • Min Order Qty: 1 unit
  • Dimensions: 150 mm x 110 mm x 45 mm
  • Housing Material: V2A half shell
  • Connector Type: TE JPT
  • In-/Outputs (total): 26
  • Operating Voltage: 9 -30 V (12V (Code C), 24 V (Code E)
  • Protection Class: Up to IP65
  • Protocols: CAN Interface 2.0 A/B ISO 11898-2, SAE J1939
Technical Data
  • Number of Pins: 42
  • In-/Outputs (total): 26
  • Inputs (total): 14
  • Inputs (analog): 8
  • Inputs (digital): 6
  • Outputs (total): 12
  • Outputs (PMW capable, integrated current measurement INA): 8
  • Processor Family: Freescale HCS12
  • Processor: 16 Bit
  • CAN Interfaces: 2
  • RS232 interfaces: 1
  • RS485 Interfaces: 1
  • Temperature Range: -40 to 85 degrees C
  • Protection Class: Up to IP65
  • Operating Voltage:  9-30 V
  • Current Consumption: 3 mA
  • Programming System: MRS Developers Studio



Mating Connector



Datasheet







×





×
