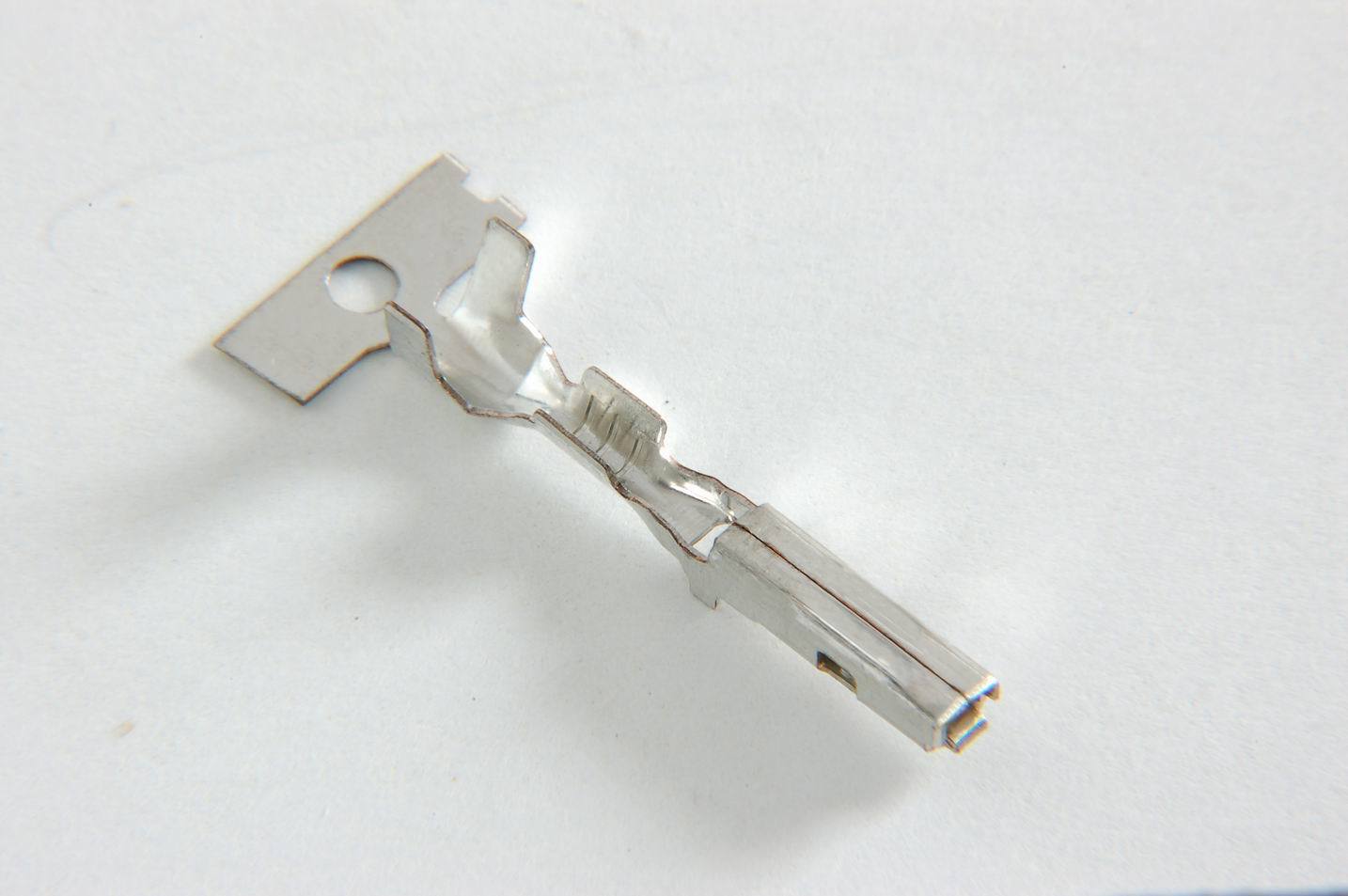

100047 Direct Equivalent to Yazaki 7116-1304
100047 Direct Equivalent to Yazaki 7116-1304
100047 Direct Equivalent to Yazaki 7116-1304

100047 Direct Equivalent to Yazaki 7116-1304

by Connector ID
$0.25
Request Custom Pricing

Buy in Bulk and Save:

  • 25-99 Pieces ($0.25 / Pc)
  • 100-499 Pieces ($0.19 / Pc)
  • 500-999 Pieces ($0.17 / Pc)
  • 1000+ Pieces ($0.10 / Pc)
Description
  • Product Type: Terminal
  • Min Order Qty: 25 units / Multiples: 25
  • Connector ID Part Number: 100047
  • Brand: Yazaki Equivalent
  • Drop-in Replacement for Yazaki Part No.: 7116-1304
  • Product Family:  62 (1.5 mm) Z Type
  • Wire Size Range: 0.5 - 0.85 sqmm
  • Sealed/Unsealed: Sealed
  • Gender:  Female
  • Material: Copper Alloy
  • Plating: Tin
  • Dimensions: L :21.0 mm / W: 2.5 mm / H: 2.1 mm / E: 8.9 mm



Associated Wire Seals

100089        1.3 -1.8 mm wire insul. dia., Sky Blue, SIR, (7157-3790-90)

100090        1.3 - 2.2 mm wire insul. dia., Aqua Blue, SIR, (7157-3790-90)

100091        1.6 - 2.4 mm wire insul. dia., Lt. Green, SIR, (7157-3791-60)



Mating Terminals



100049        0.3 - 0.5 sqmm, 62 (1.5 mm), Male, (7114-1304) loose piece

100049R     0.3 - 0.5 sqmm, 62 (1.5 mm), Male, (7114-1304) reel

100050        0.5 - 0.85 sqmm, 62 (1.5 mm), Male, (7114-1305) loose piece

100050R     0.5 - 0.85 sqmm, 62 (1.5 mm), Male, (7114-1305) reel





















×





×
